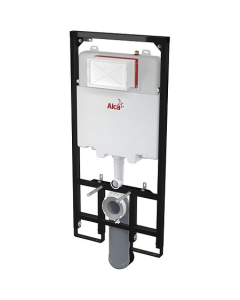

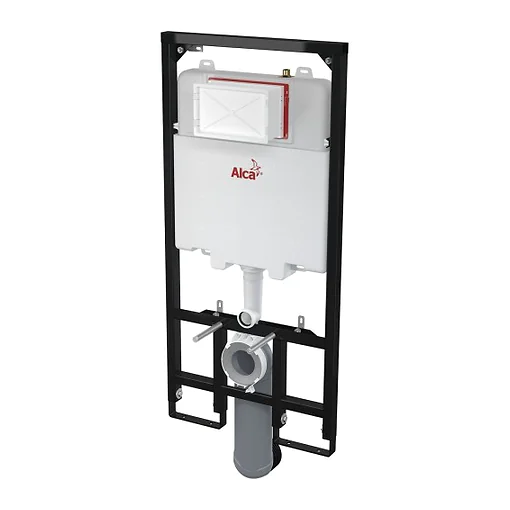

Alca WC Frame & Cistern 1.12M Slim – 1120X84

Application
For wall-hung WC
For installing in front of a support wall or into a plasterboard construction, installation depth is only 84 mm
For floor thickness 0–100 mm
For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm

Technical
Big Flush 6-9L
Small Flush 2.5 - 3.5L
Default Big Flush Setting 6L
Default Small Flush Setting 3L
Water Volume in Cistern 9L
Load test - 400KG

Specifications
Visible marks for both leveling and the centerline
Angle valve with the ability to connect to the Mepla piping system
The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
The installed module is covered with a plasterboard panel and there is no need for any additional fixing or anchoring elements
The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
Dual flush independently adjustable with hygienic reserve

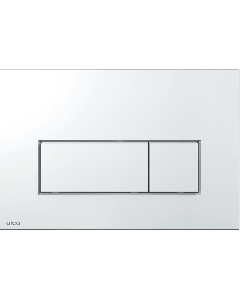

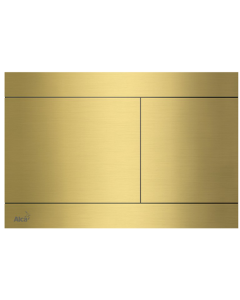

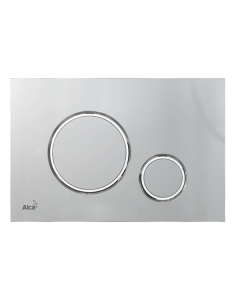

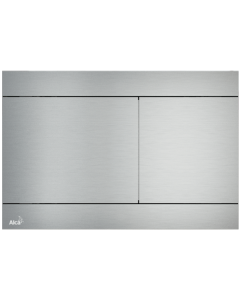

Compatible with all ALCA flush plates
Maintenance work without using any tools
Water supply from the rear/top
The cistern is made of one piece, thus ensuring 100% impermeability
The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
Installation depth adjustable from 20–60 mm
Installation depth 84 mm
Adjustable telescopic feet, range 0–100 mm
Frame material: powder-coated metal

EAN: 8595580551384
